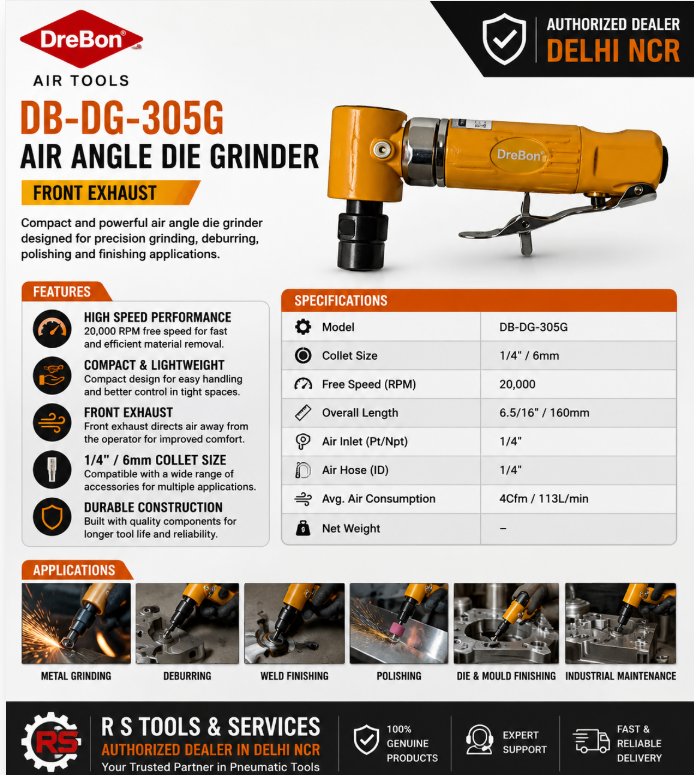

DreBon DB-DG-305G Angle Die Grinder
Compact Pneumatic Air Angle Die Grinder for Precision Grinding
The DreBon DB-DG-305G Air Angle Die Grinder is a compact pneumatic tool designed for precision grinding, deburring, polishing, and finishing work in workshops and industrial environments. Its angled design makes it convenient for accessing areas where a straight grinder may be difficult to handle.
With a 20, 000 RPM free speed, the DB-DG-305G is suitable for detailed finishing and material-removal applications when used with the correct accessory.
Product Specifications
Specification Details
Brand DreBon
Model DB-DG-305G
Tool Type Air Angle Die Grinder
Exhaust Type Front Exhaust
Collet Size 1/4' / 6 mm
Free Speed 20, 000 RPM
Overall Length 6.5/16' / 160 mm
Air Inlet 1/4'
Air Hose ID 1/4'
Average Air Consumption 4 CFM / 113 L/min
Operation Pneumatic
Key Features
High-Speed Performance
The DB-DG-305G provides a 20, 000 RPM free speed, making it suitable for detailed grinding, deburring, smoothing, and finishing applications.
Angled Design
The angled configuration provides convenient access to certain work areas and makes the tool useful for precision work in workshops and fabrication environments.
1/4-Inch / 6 mm Collet
The grinder supports 1/4-inch and 6 mm collet sizes, allowing use with compatible grinding and finishing accessories.
Front Exhaust
The front-exhaust design directs discharged air toward the front of the tool, providing a practical configuration for suitable workshop applications.
Compact Construction
With an overall length of approximately 160 mm, the tool is designed for convenient handling in detailed grinding and finishing work.
Applications
The DreBon DB-DG-305G Angle Die Grinder can be used for suitable applications such as:
Metal grinding
Deburring
Weld finishing
Surface preparation
Polishing
Die and mould finishing
Metal fabrication
Automotive workshop applications
General industrial maintenance
Precision grinding
The correct accessory should always be selected according to the material, application, and tool speed rating.
Why Choose DreBon DB-DG-305G?
The DB-DG-305G combines a compact angled design, 20, 000 RPM free speed, 1/4-inch/6 mm collet, and pneumatic operation, making it suitable for detailed grinding and finishing requirements.
Its 4 CFM average air consumption also makes it practical for compatible compressed-air systems.
Frequently Asked Questions
What is the DreBon DB-DG-305G?
The DreBon DB-DG-305G is a pneumatic Air Angle Die Grinder with front exhaust, designed for grinding, deburring, polishing, and finishing applications.
What is the free speed of the grinder?
The specified free speed is 20, 000 RPM.
What is the collet size?
The tool is specified with a 1/4-inch / 6 mm collet.
What is the air inlet size?
The air inlet is 1/4 inch.
What is the air hose size?
The specified air hose inside diameter is 1/4 inch.
How much air does the DB-DG-305G consume?
The average air consumption is approximately 4 CFM / 113 L/min.
What is the overall length?
The overall length is approximately 160 mm.
What can an angle die grinder be used for?
It can be used for suitable grinding, deburring, polishing, weld finishing, surface preparation, mould finishing, and detailed metalworking applications.
Is the DB-DG-305G suitable for metal fabrication?
Yes, it can be used for compatible metal fabrication, finishing, and deburring applications.
Does the grinder require an air compressor?
Yes. The DB-DG-305G is a pneumatic tool and requires a suitable compressed-air supply capable of providing the required airflow and operating pressure.
Can different grinding accessories be used?
Only accessories that are compatible with the 1/4-inch / 6 mm collet and rated appropriately for the grinder's operating speed should be used.
What should I consider before purchasing?
Consider the required collet size, accessory type, operating speed, air supply capacity, application, and material before selecting the tool.
DreBon Angle Die Grinder Supplier
The DreBon DB-DG-305G Air Angle Die Grinder is a suitable option for professionals and workshops requiring a compact pneumatic grinder for precision finishing and material-removal work.
For product availability, pricing, and application requirements, customers can enquire with R S Tools & Services, a supplier of pneumatic and industrial tools in Delhi NCR.
